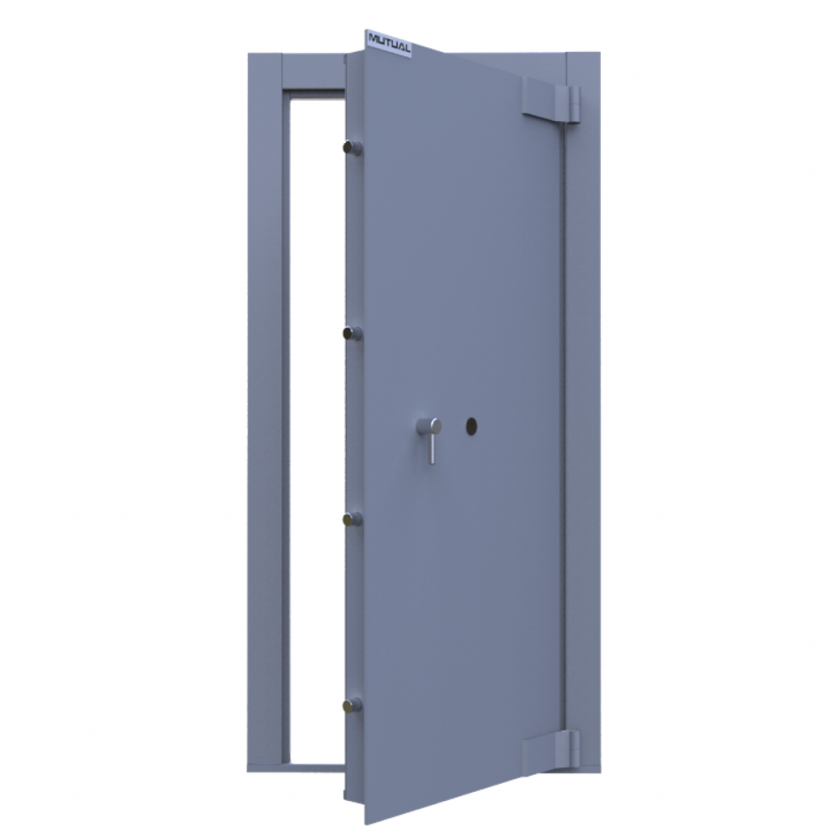

DS 2 – Strongroom Door

All our Strongroom doors offer excellent protection against fire and skilled methods of attack.

DS 2 – Strongroom Door

The DS 2 Strongroom door offers excellent protection against fire and skilled methods of attack.

The sturdy construction and locking mechanism make these strongroom doors ideal for various applications. This includes places such as schools, businesses, post offices, and industrial buildings. The higher security level vault and strongroom doors consisting of Cat 2, Cat ADM, 3, 4 & 5 are designed with the highest security requirements in mind.

Specifications:

  • Overall thickness: 120mm
  • Outer Plate: 10mm
  • Boltwork: 8 Bolts of 40mm diameter – 4 front and 4 back
  • Locking: 7-Lever security keylock(combination lock as an optional extra)
  • Weight: 210 kg
  • 1 x Keylock

Dimensions

  • Wall Opening: 1970H x 870W mm
  • Door Opening (180°): 1883H x 760W mm
  • Door Opening (90°): 1883H x 660W mm
  • Over door frame: 2032.5H x 1000W mm
  • Door Clearance Diameter (180°): 1617.5mm
  • Projection of Door (90°): 865mm
  • Projection of Door (180°): 192.5mm
Number Of Steps

, , , ,

Door Opening

Left Hand Opening, Right Hand Opening
